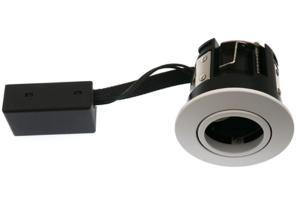

IP20 IC Rated LED Downlight Housing For Gu10 Halogen Lamp

  • 1
  • 2
  • 3

Brand Name : VERTEX

Model Number : V3224

Certification : CE EMC LVD

Place of Origin : CHINA

MOQ : 300pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 500,000pcs/month

Delivery Time : 3-6 weeks according to different quantities

Packaging Details : white box/color box

Item type : IC housing for GU10

Adjustable Angle : 30 Degree

Lamp body material : Pastic

Light Source : LED or Halogen Lamp

Insulation Compatible : Yes

Material : Plastic Aluminum

Contact Now

IC housing for GU10 Insulation Compatible Retrofit Halogen Lamp GU10

IC Housings are housings rated for direct contact with insulation.

The convenient terminal box is designed to aid and speed up installation, allowing contractors to efficiently install multiple fittings in less time. The compact block features 'piano key' terminals and loop in/loop out for large installations, plus the strong chord grip when clipped into place offers peace of mind for safety, minimising the chance of cable movement or failure. The tool-less terminal block is supplied with all our fire rated downlights.

TECHNICAL DATA

Voltage 220~240V Wattage 5W LED
Light Source LED or Halogen Bulb Lumen >500lm
Beam Angle 40 CRI Ra>80 (Ra> 90 available)
Color Temperature 2700K/3000K/4000K/5000K Driver dimmable
PF >0.8 Dimmable Triac
IP Rating IP20 Life span 40,000 hrs
Guarantee 5 years

DIMENSION

Diameter 88mm Height 70mm
Cut out Φ75mm

COMPONENT

Material Plastic Aluminum Color White, Brush Nickel,Brass Black,Chrome

Features:

Low Profile,New Construction,Retrofit,Adjustable,Insulation Contact

1. Downlight for Low Profile Ceiling

2. New Construction

3. GU10 or Halogen Lamp Retrofit

4. 40 degree Adjustable

5. Insulation Contact:isolation covered directly

FAQ
May I have a sample order for IC GU10 Downlight ?
Yes, sample order is available.
What about the lead time?
The lead time of Tilt LED Downlight sample is 5-7 days, The delivery time of regular order is 30-45 days.
Do you have any MOQ limit for Downlight order?
Yes, the MOQ limit is according to different items. Exact MOQ will be showed in quotation.
