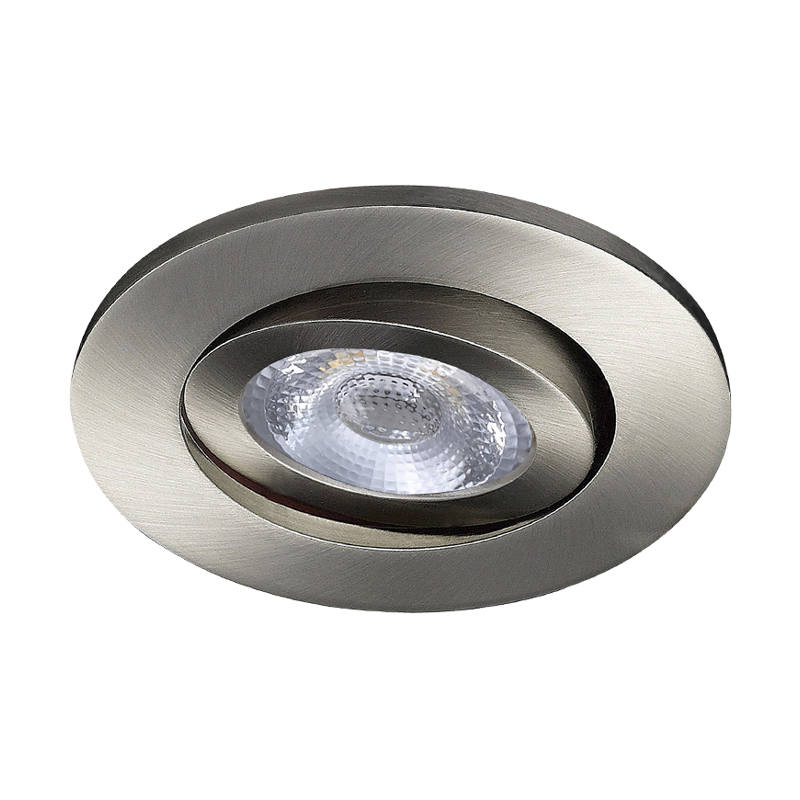

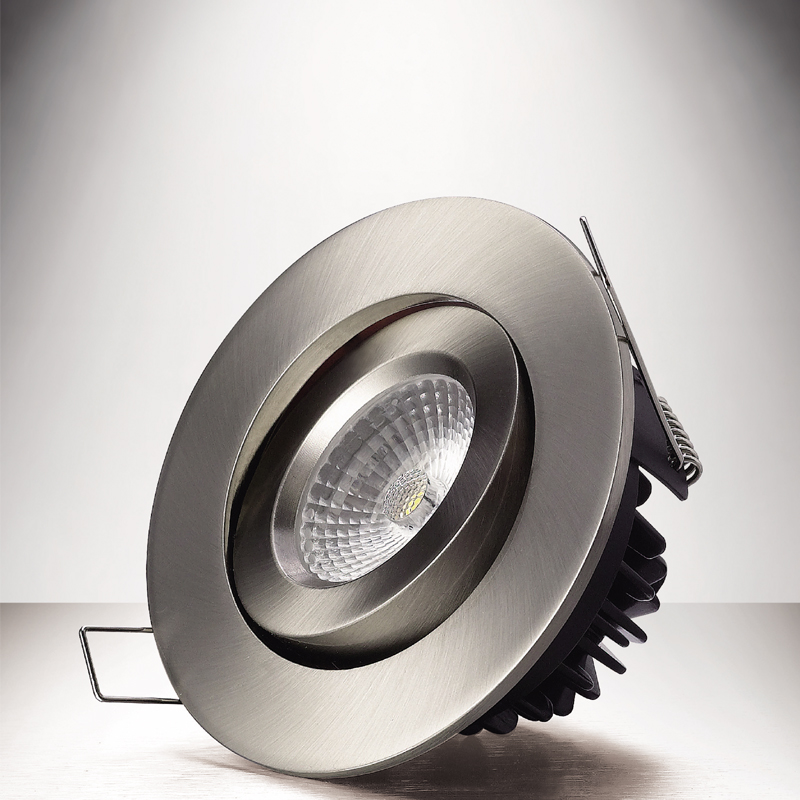

30/60/90 Minutes Fire Rated Downlight Dimmable For Indoor Ceiling Lighting
What is a fire rated downlight?
Fire rated downlighters help slow the spread of fire, compared to traditional downlights.
When you cut a hole into a ceiling and install recessed lights, you are reducing the existing fire rating of the ceiling. This hole then allows for fire to escape and spread more easily between floors.
Fire rated downlights have an important role in fire safety, as they effectively block the hole cut into the ceiling. On each downlighter they have an intumescent pad, which will expand when it reaches a certain temperature, and ultimately slow the spread of fire. Different fire rated downlights have different fire rated times, varying from 30 to 90 minutes.
Without fire rated downlights, it can mean that your ceiling collapses within just a few minutes compared to giving you extra time to get out to safety.
TECHNICAL DATA
| Voltage | 220~240V | Wattage | 8W LED |
| COB | Luminus/Bridgelux/Cree | Lumen | >640lm |
| Beam Angle | 40 | CRI | Ra>80 (Ra> 90 available) |
| Color Temperature | 2700K/3000K/4000K/5000K | Driver | dimmable/nondimmable |
| PF | >0.9 | Dimmable | Triac/1-10V/Dali |
| IP Rating | IP65 | Life span | 40,000 hrs |
| Guarantee | 5 years | | |
DIMENSION
| Diameter | 96mm | Height | 56mm |
| Cut out | Φ75-83mm | | |
COMPONENT
| Material | Die-cast aluminum | Color | White, Brush Nickel,Brass Black,Chrome |
Features:
1. It's 25 degree adjustable recessed led downlight;
2. It can be 30/60/90 minutes fire rated;
3. The downlight driver is with quick connect box saving labor and time;
4. The downlight can be triac/1-10V/DALI dimmable;
5. LED Lens is own moulded by PMMA with high lighting transmittence;
6. Downlight Heating Sink Material is Aluminum;
7. Downlight warranty is 5 years with lifespan of 40,000 hours.
FAQ
| What's the function of Fire Rated Downlight? |
| Fire rated downlighters help slow the spread of fire, compared to traditional downlights. |
| Do you have the authority certificate for Fire Rated? |
| Yes,the authority testing report and certificate can be available. |
| Do you have any MOQ limit for Downlight order? |
| Yes, the MOQ limit is according to different items. Exact MOQ will be showed in quotation. |
| |
